Visions® 3500 Series Special Shape

Visions Series direct-set and circle top windows are available in a wide variety of shapes and styles. Trapezoids, half circles, triangles, quarter circles and specialty shapes can be used alone or in combinations that give your home a customized look that's unique to you.
  • Variety and Versatility
    Custom shapes and sizes, from traditional to contemporary, add direct sun light and unique charm to any room.  Use direct-set windows in stunning combinations to create visual interest or reshape light with a wide range of grille options.  Weather Shield's Visions Series offers a comprehensive selection of window and door products to meet your individual design needs and budget.


Inspiration

Explore Visions® 3500 Series Special Shape Options
open

Frame Options

The Visions 3500 comes in two frames styles:
- Integral j-channel frame to ease installation of siding or accessory trim
- Non-integral j-channel frame for brick or stucco installations


Visions Frame Options

Series Exterior Colors

A wide variety of solid extrusion colors and painted exterior colors are available for the Visions 3500 Series.

Series Solid Colors

Solid Extruded Interior/Exterior Colors:

Standard Colors
Colors shown may not be accurate representations. Actual color samples are available upon request.
*Desert Tan and Heritage Brown solid extruded interior/exterior colors are not available in all regions.

Series Painted Exterior Metallic Colors

Visions 3500 Painted Exterior Metallic Colors:  (Interior color: white, cameo or tan)




Series Painted Exterior Colors

Vision 3500 Painted Exterior Standard Colors: (Interior color: white, cameo or tan)

Standard Colors - Adobe, Craftsman Bronze, Brick Red, Hardford Green, Jet Black

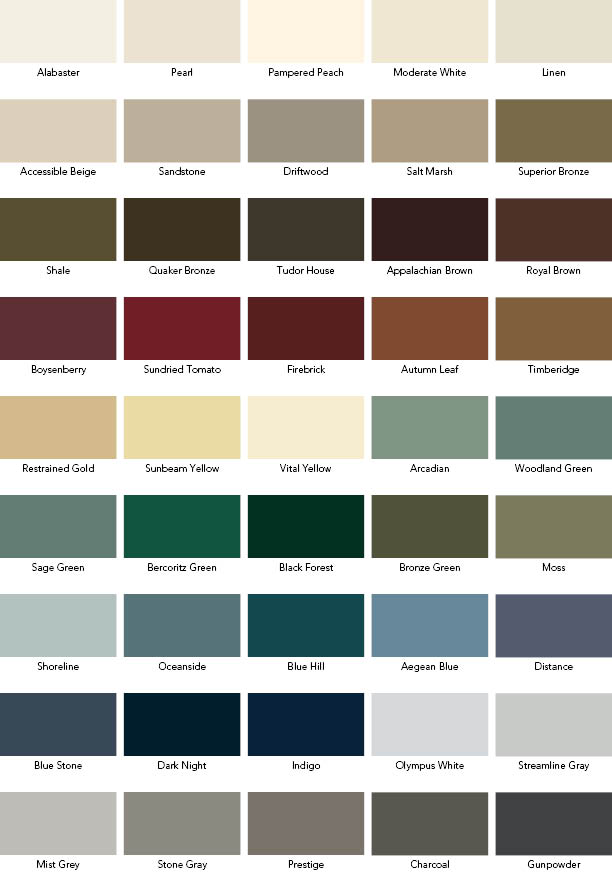

Visions 3500 Painted Exterior Designer Colors  (Interior color: white, cameo or tan)

Designer Colors

Colors shown may not be accurate representations. Actual color samples are available upon request.

Series Interior Colors

These solid extrusion interior colors are available for the Visions 3500 Series.
Windows and doors with painted exteriors have a white, cameo, or tan interior.
*Desert Tan and Heritage Brown solid extruded interior/exterior colors are not available in all regions.

Series Solid Colors

Solid Extruded Interior/Exterior Colors:

Standard Colors
Colors shown may not be accurate representations. Actual color samples are available upon request.
*Desert Tan and Heritage Brown solid extruded interior/exterior colors are not available in all regions.

Series Glazing

No matter what climate you live in, Visions® offers the most extensive selection of energy efficient glass options available. The exclusive Zo-e-shield® glazing systems feature multiple layers of Low-E coating, inert gas-filled insulating airspace*, as well as Real Warm Edge® spacers. Learn more about the benefits of these features.

Series Glazing Options

Glazing Options

Series Grilles

No matter the style of your project there are grille options to suit your design. There are three grille options available including Grille Between the Glass, Simulated Divided Lite, and Value Divided Lite.

Grille Between the Glass

Grille Between the Glass
Grille Between the Glass (GBG) consist of muntin bars in between two panes of insulating glass, giving you the look of divided lites while making window cleaning easier.



Simulated Divided Lite

Simulated Divided Lite

Simulated Divided Lites (SDL) offer the authentic look of True Divided Lites without sacrificing energy efficiency. Interior and exterior bars are permanently adhered the glass and a narrow spacer bar is positioned within the insulating glass airspace. Unlike True Divided Lites, SDL utilizes a single pane of insulating glass, decreasing the potential for energy loss. Exterior bars will be finished to match the exterior finish specified. Shown with optional Grille Between the Glass (GBG).



Value Divided Lite

Simulated Divided Lite

Value Divided Lites (SDL) offer the authentic look of True Divided Lites without sacrificing energy efficiency. Interior and exterior bars are permanently adhered the glass. Unlike True Divided Lites, VDL utilizes a single pane of insulating glass, decreasing the potential for energy loss.



Exterior Trim

These exterior trim accessories allow for a clean and finished exterior look.

Exterior Trim & Accessories

Exterior Trim & Accessories

Technical Data
open

2D Elevation Drawings


Visions 3500 Direct-Set Special Shape

2D Section Drawings


Visions 3500 Direct Set without J-channel
Visions 3500 Direct Set with J-channel
Visions 3500 Accessories

CSI Specifications


Visions 3500 Direct-set

Quick Specifications


Visions 3500 Direct-Sets

Structural Test Data


Visions 3500 Direct-Set Special Shape without J-channel
Visions 3500 Direct-Set Special Shape with J-channel

Thermal Test Data


Visions 3500 Special Shape Windows without J-channel
Visions 3500 Special Shape Windows with J-channel
